Reproducible Builds In Koji

Mike McLean

Sr. Software Engineer

Red Hat

About Mike

• Koji author and maintainer
• Release Configuration Management team
  • aka Release Engineering
• Long ago: installer QA

• Past life: mathematics

• FAS: mikem

• mikem@redhat.com

About KOji

• Fedora's build system
• but also used by
  • Red Hat
  • CentOS
  • Scientific Linux
  • Amazon
  • and more

Reproducibility is the ability of an entire experiment or study to be duplicated, either by the same researcher or by someone else working independently.

Ingredients

• Source code
• Build parameters
• Build environment

Building

• Fresh buildroot
• Generated using mock
• ...from a repo generated by koji
• Repo content comes from the build tag
  • at a specific point in time
• Run build in buildroot

What Koji Tracks

• Source code
  • srpm saved with build
  • also, git ref store in task info
• Build parameters
  • captured in one of the following
    • srpm
    • task parameters
    • build tag
• Build environment
  • repo id used to generate buildroot
    • repo references build tag, event id
  • contents also recorded in the database

Untracked, so far

• software outside the buildroot
  • mock
  • yum
  • koji itself
• running kernel version

DEbian

• https://wiki.debian.org/ReproducibleBuilds
• Goal: byte for byte
• Two major areas of work
  • new toolchain that records build environment
    • *.buildinfo files
  • fixing individual packages
    • nondeterminism
      • timestamps
      • randomness
    • environmental factors
      • umask
      • uid/gid
      • locale
    • https://reproducible.debian.net/index_issues.html

DEBIAN

These guys are doing great work!

Much of it is landing upstream

Back to Koji

• Koji has tracked build environments since day 1
• Different goals
  • reproducing failures
  • build consistency
  • determining impact of toolchain bugs

Koji buildroots

• Each build task given:
  • source code
  • target (build tag, destination tag)
• Determine current repo for build tag
  • tag contents are versioned
  • each repo references a particular event id
• Generate mock buildroot from current repo
• Run mock build
• Data trail
  • task parameters
  • buildroot reference for each rpm
    • buildroot references repo id
  • buildroot contents recorded

Getting the Data

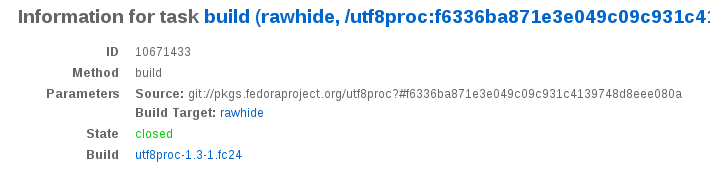

• Task parameters:
  • koji taskinfo command (or web ui)
• Buildroot contents
  • koji list buildroot <id>
  • get buildroot id from rpminfo
  • (or web ui)
• Yum repo
  • for recent builds, koji may still have the repo
  • for older builds, still have the data
  • Koji can remake the repo

Local Mock

$ koji mock-config --task 10676157 -o mikem.cfg
(download source rpm)
(move mock config in place)
$ mock -r mikem --rebuild ./ast-8.0.5-1.fc23.src.rpm

Build succeeds? yes

Byte for byte? no (varies by package)

VIA Koji

Approach:

• Determine parameters of original build
  • source url
  • build tag
  • koji event id
• Get koji to replicate the repo
• Rebuild using the replicated repo

Requires special access now, but hopefully that can change

$ koji call repoInfo 510427
{'create_event': 11952446,
 'create_ts': 1439297485.77903,
 'creation_time': '2015-08-11 12:51:25.779027',
 'id': 510427,
 'state': 2,
 'tag_id': 315,
 'tag_name': 'f24-build'}

Let's Do ThIS

$ koji call newRepo f24-build 11952446
10678016
$ koji watch-task 10678016
Watching tasks (this may be safely interrupted)...
-snip-
10678016 newRepo (f24-build) completed successfully
$ koji call getTaskResult 10678016
[510635, 11952446]
$ koji build --nowait --arch-override=x86_64 --scratch --repo-id=510635 none 'git://pkgs.fedoraproject.org/utf8proc?#f6336ba871e3e049c09c931c4139748d8eee080a'
Created task: 10678134
Task info: https://koji.fedoraproject.org/koji/taskinfo?taskID=10678134
$ koji watch-task 10678134

COMPARISON

$ (cd a; koji download-build --arch x86_64 utf8proc-1.3-1.fc24 )
utf8proc-1.3-1.fc24.x86_64.rpm
utf8proc-devel-1.3-1.fc24.x86_64.rpm

$ (cd b; koji download-task  10678134 )
Downloading [1/4]: utf8proc-1.3-1.fc24.x86_64.rpm
Downloading [2/4]: utf8proc-debuginfo-1.3-1.fc24.x86_64.rpm
Downloading [3/4]: utf8proc-devel-1.3-1.fc24.x86_64.rpm
Downloading [4/4]: utf8proc-1.3-1.fc24.src.rpm

$ rpmdiff -iT a/utf8proc-1.3-1.fc24.x86_64.rpm b/utf8proc-1.3-1.fc24.x86_64.rpm
$

Open Questions

• With careful replication, what percentage of Fedora will rebuild byte-for-byte?
• Do we have failure cases beyond those found by the Debian reproducibility project?
• Is there interest in a Fedora reproducibility effort?

Q & A

[thank you]
